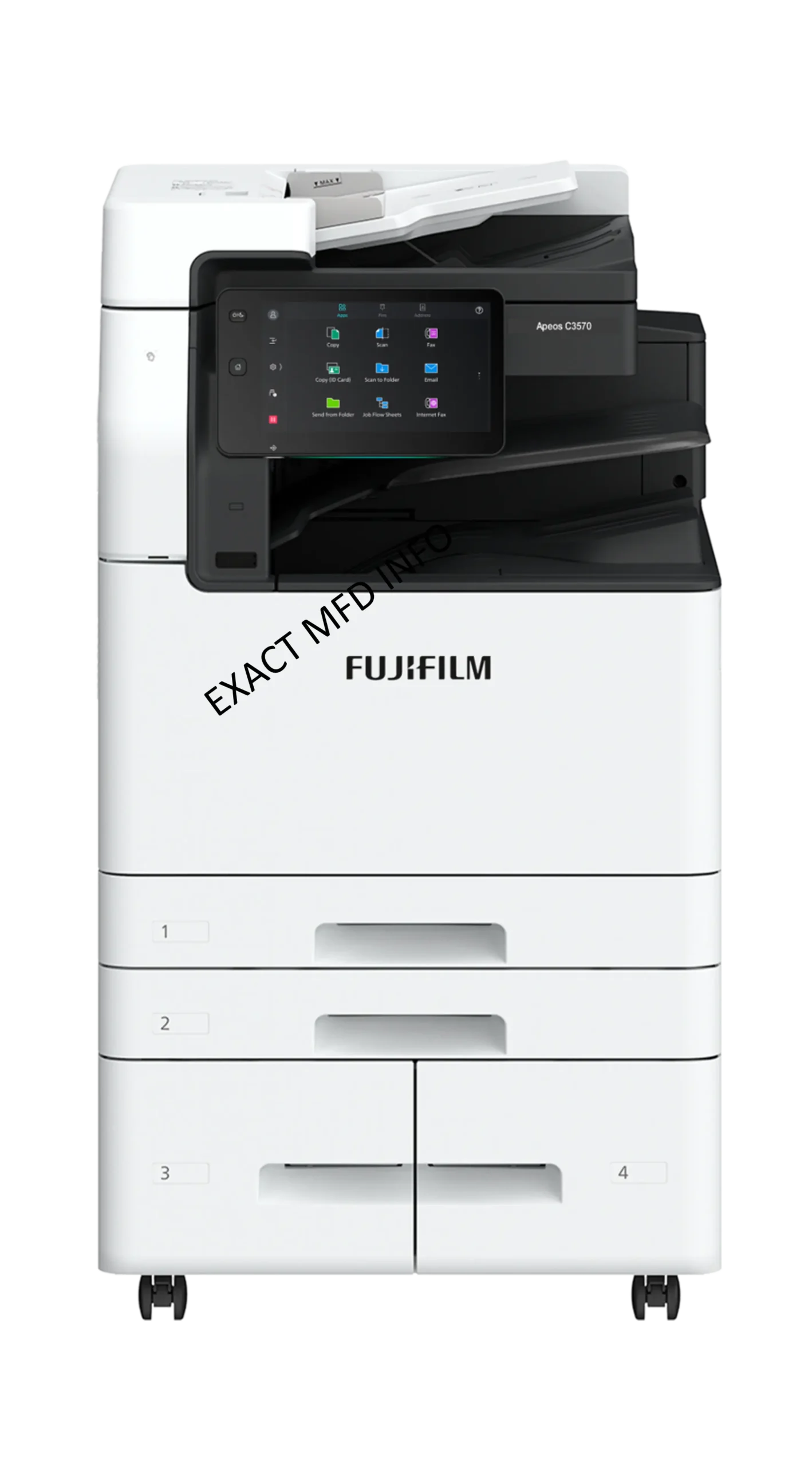

Apeos C3570/C3070

Functions: Print, Copy, Scan (optional Fax, Wireless, Authentication)

Print & Copy Speed (A4):

• Apeos C3570: ~ 35 ppm (colour & B/W)

• Apeos C3070: ~ 30 ppm (colour & B/W)

• First New Copy Out Time (A4):

  • Mono: ~4.9 sec

  • Colour: ~6.7 sec

• Scan Speed:

  • Single-pass duplex scanning: ~80 ppm (simplex) / ~160 ipm (duplex) (colour & B/W)

• Scan Destinations: Email, SMB/PC, Network Folder, Desktop, USB, Scan to Fax, etc.

• Scan Output Formats: TIFF, JPEG, PDF (incl. encrypted and searchable options), XPS, DOC/Excel (optional OCR)

Colour Capability: Full colour

Memory: 4 GB (max)

Storage: 128 GB SSD

Print Resolution: Up to 1,200 × 2,400 dpi (best quality)

Scan Resolution: 600 × 600 dpi

Warm-Up Time: ~24–30 sec (approx)

Recovery Time (from Sleep): ~5–13 sec depending on mode and configuration

• Standard Paper Capacity:

  • 4-tray models: 4 × 520-sheet + 90-sheet bypass (total ~2,170 sheets)

  • Tandem / hybrid configurations available with larger trays

• Maximum Paper Capacity: Up to ~5,110 – 6,140 sheets with high capacity feeders

• Supported Paper Sizes:

  • Max: SRA3 (320×450 mm), 12″×18″, A3 (305×457 mm)

  • Extended sizes up to ~320×483 mm / 12.6″×19.1″ via bypass

  • Min: A5 and very small custom sizes (via bypass)

• Duplex Printing: Standard automatic two-sided printing

• Paper Weight: 52 – 300 gsm (trays & bypass)

• Interfaces: Gigabit Ethernet (standard), optional Wireless LAN

• Mobile & Cloud: Mobile printing support (AirPrint, Mopria, direct USB/drive options)

• Print Languages: Standard drivers; optional PostScript 3

• Supported OS: Windows, macOS, Linux

• Power Supply: AC 220–240 V, 50/60 Hz

• Max Power Consumption: ~ 2.2 – 2.4 kW

• Sleep Mode: ~ 0.5 W

• Ready Mode: ~ 57 W

• Dimensions: Approx. 633 × 677 × 1,119 mm (W×D×H)

• Weight: ~ 124 kg
